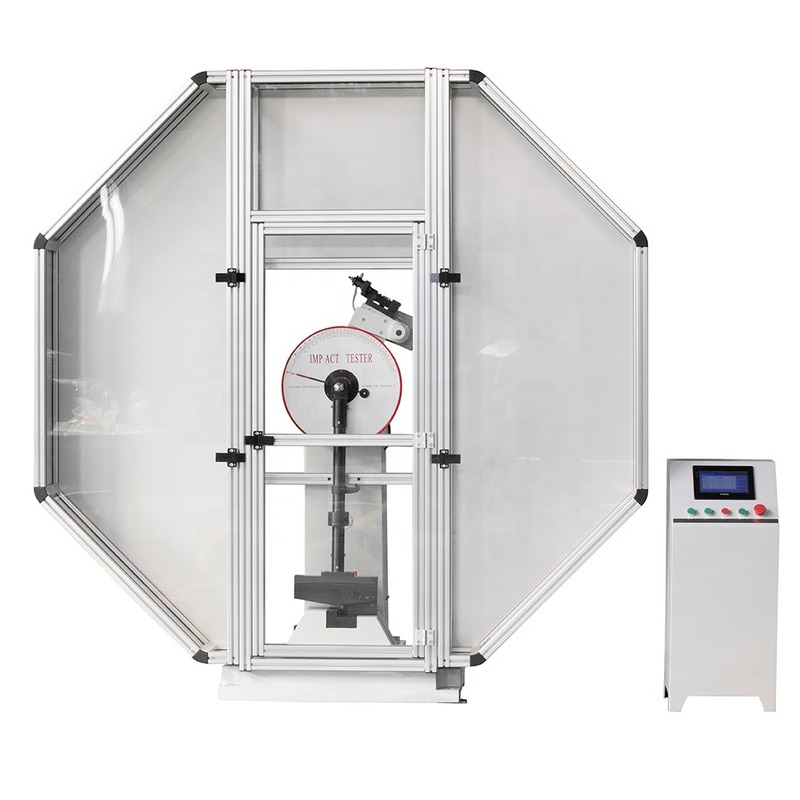

300J 500J 750J Pendulum Impact Testing Machine Metal Specimen

1 Set
MOQ
$4,000.00(1 - 1 Sets) $3,900.00(>=2 Sets)
Price
300J 500J 750J Pendulum Impact Testing Machine Metal Specimen
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1 Year, 12 Months
Customized Support: OEM
Model Number: JBS-C
Power: Electronic
Product Name: Charpy Impact Tester
Application: Metal Etc
Max. Impact Energy(J): 300J 450J 600J 750J
Impact Speed: 5.24 M/s
Raised Angle: 150°
Round Angle Of The Jaw: R1-1.5mm
Angle Accuracy: 0.1°
Standard Specimen Dimension: 10mm*10(7.5/5)mm*55mm
Certificate: CE ISO
Certification: CE
Basic Infomation
Certification: CE ISO, CE
Model Number: JBS-C
Payment & Shipping Terms
Packaging Details: Inner: Water-proof plastic film packagingOuter: Plywood box for overseas transportationJBS-C Series 300J 450J 750J Touch Screen Digital Display Pendulum Impact Tester Price
Product Description
Product Description


JBS-C Series 300J 450J 750J Touch Screen
Digital Display Pendulum Impact Tester Price

1. Capacity: 150J,300J,450J,600J,750J 2. Application JBS-C Series Touch Screen Semi-automatic Impact Testing Machine is used for measuring  the metal material resistance performance under dynamic load,in order to determine the material properties under dynamic load. It’s a necessary testing machine,not only used in the metallurgy,machine manufacture etc areas, but also used for the science research.
JBS-C Series 300J 450J 750J Touch Screen Digital Display Pendulum Impact Tester Price 3. Standards: ASTM E23, ISO148-2006 and GB/T3038-2002, GB/229-200,ISO 138,EN10045. 4. Main Technical Specifications:
Model
JBS-300C
JBS-450C
JBS-600C
JBS-750C
Max. impact energy(J)
300
450
600
750
Pendulum Torque
160.7695
241.1543
321.5390
401.9238
The distance between the
pendulum shaft and impact point

750mm



Impact speed
5.24 m/s



Raised angle
150°



Round angle of the jaw
R1-1.5mm



Round angle of impact edge
R2-2.5mm,(R8±0.05mm optional)



Angle accuracy
0.1°



Standard specimen dimension
10mm×10(7.5/5)mm×55mm



Power supply
3phs, 380V, 50Hz or specified by users



Net Weight (kg)
900
