Notch Making Machine For Plastic Izod And Charpy AT403 Impact Test

1 Set
MOQ
Notch Making Machine For Plastic Izod And Charpy AT403 Impact Test
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: AT403
Power: Electronic
Cutting Thickness: 25mm
Motor Speed: 1440r/min
Cutting Tooth: Type A & B
Certificate: CO, CE, CNAS
Standard: ASTM D256, ISO 179, 180, GB/T 1843
Warranty: 1 Year
Power Supply: AC 1 Phase 220V 60/50Hz
Product Name: Plastic Pipe Notching Sampling Machine
Color: Black
Weight: 30Kg
Basic Infomation
Certification: CO, CE, CNAS
Model Number: AT403
Payment & Shipping Terms
Packaging Details: Export Wooden Case for Plastic Pipe Notching Sampling Machine
Supply Ability: 100 Set/Sets per Month
Product Description
Product Description

Product Application

AT403 Automatic Notch Making Machine is used for specimen preparation for impact testing of plastics and related materials.

SPECIFICATIONS FOR AUTOMATIC NOTCH MAKING MACHINE
Operation mode
Automatic
Maximum specimen thickness
25mm
Motor speed
1440r//min
Cutter types
A: 45°±1° R0.25
B: 45°±1° R1.0
Notch types
Type A, type B
Power
AC220V, 50Hz
Dimensions
316*366*450mm

Main Features

Advanced model with higher cutting speed.
★ Special design cut knife with more tooth which can make the notcher more smooth.
★ Stainless steel desktop make the machine with good appearance and durable.
★ Desktop design make the machine small and save space
★ It can make 5 samples at one time and easy to operate
★ Two cutting tooth can be selectable

Detailed Images

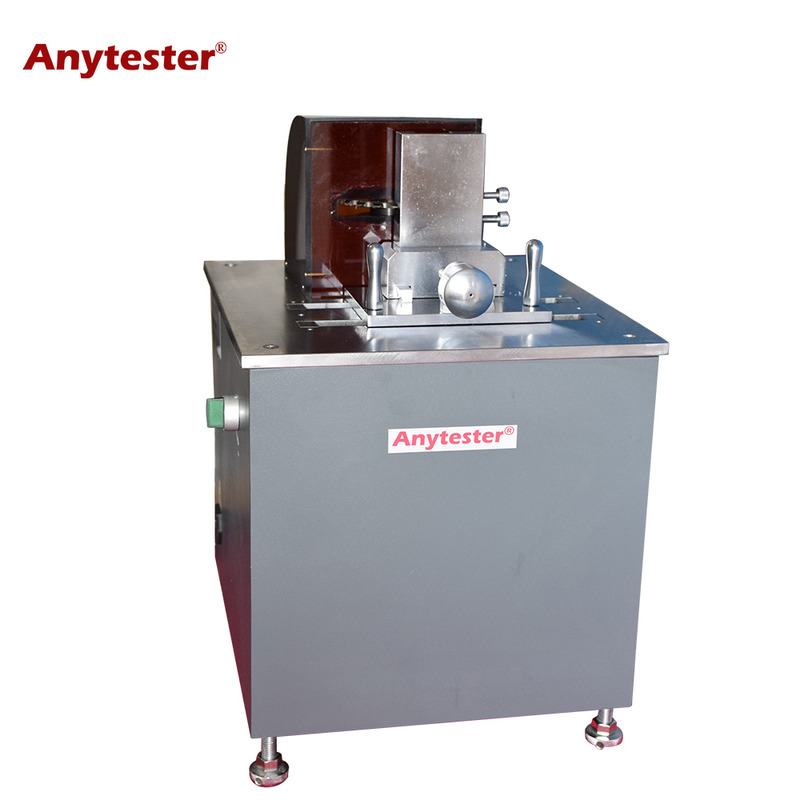

Over view

> Make 5 samples each time
> Small size, easy to move
> high quality material and painting process, nice appearance

High quality stainless steel working table

> Stainless steel make the machine long lifetime
> Nice appearance


Notch depth can be adjustable

>equipped with micrometer to adjust the notch depth.

Smooth notch

>Special design cutter
>High speed rotation reach to 1440RPM, the other’s only 500RPM


Our Company
Certifications
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
430(L) * 480 (W) * 670 (D)
Weight
50KG



Packaging Details
1. The equipment is covered with film is protect it from water vapour during the trip.
2. The box is filled with foam to protect the equipment from impact.
3. Exported wooden box made from plywood, don't need fumigated.
