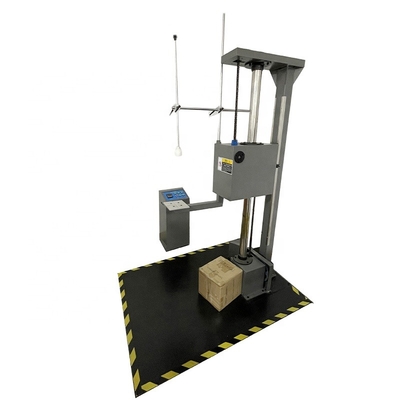

Vertical Drop Impact Testing Device Packing Testing Machine Drop Weight Test Equipment
Introduction:
This tester simulates the dropping or falling of a package to evaluate the damage. During the products handling or transportation, there may be dropping or falling, which may results in damage within the products, this tester can evaluate the impact resistance of a package according to ISO2248 standard.
All the angles and faces of the package can be tested, with digital height indicator and adopt decoder to track , which can give accurate product drop height, and the default drop height error does not exceed 2% or 10mm. The tester adopts single-arm or double-column structure, with electric reset, electric control and electric lifting devices drop, easy to use.
Specification:
| Drop height | 300mm—1500mm (adjustable) |
| Plate bearing weight | 0-80Kg |
| The thickness of the bottom plate | 10mm (solid iron plate) |
| Specimen size | 1000 x 800 x 1000mm |
| Impact plate size | 1700 x 1200mm |
| Drop height error | ±10mm |
| External dimensions of the tester | 1700 x 1200 x 2300mm |
| Power | 1.85KWA |
| Power supply | AC380V 50HZ |
| Test method | face, corner and edge drop in all directions |
