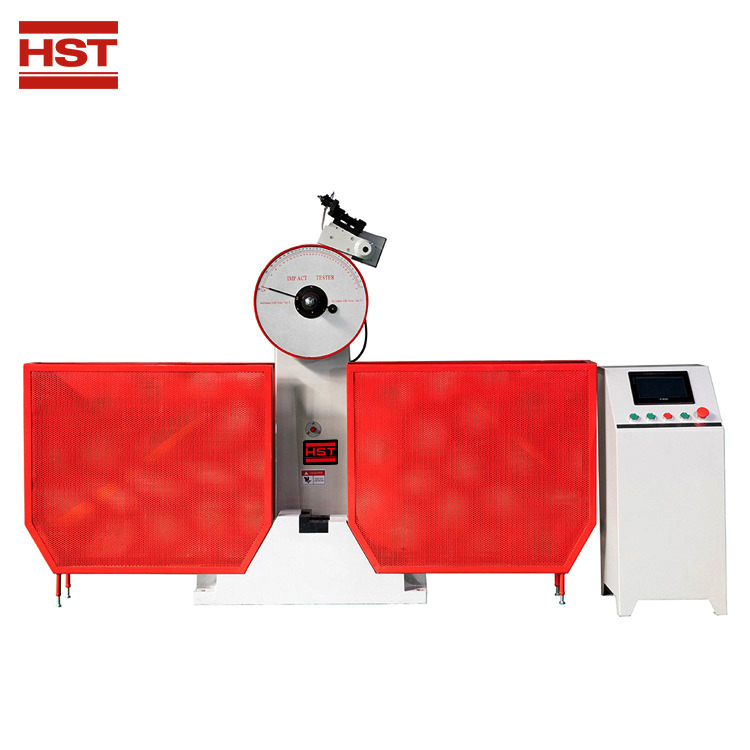

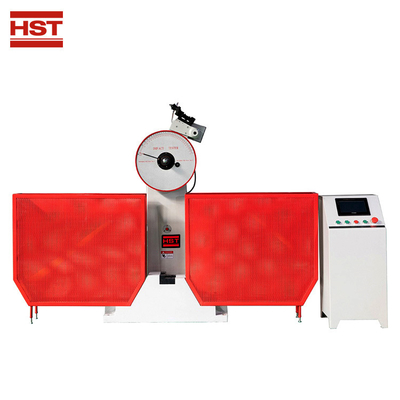

ISO equipment strength tester digital izod and charpy impact testing machine
1. Application
300J / 500J JBS Digital Impact Testing machine is mainly used to determine the anti_impact
capability of ferrous metal materials with high toughness, especially for steel and iron and their alloy, under dynamic load.
This series tester is operated semi_automatically, the pendulum of the machine can be raised or released automatically. Be applicable for continuing testing in different kinds of laboratories and other metallurgy industrial manufactories.
2. Standards:
ISO148, EN10045, ASTM E23, GB/T3808-2002 ,GB/T229-2007
3. Main Technical Specifications:
|
Model |
JBS-300 |
JBS-500 |
JBS-800 |
||
|
impact energy |
150/300J |
250/500J |
500/800J |
||
|
The distance between the pendulum shaft and impact point |
750mm |
800mm |
800mm |
||
|
Impact speed |
5.2m/s |
5.4 m/s |
5.9m/s |
||
|
Pre-rising angle of the pendulum |
150° |
||||
|
Specimen bearer span |
40+0.2mm |
||||
|
Round angle of the jaw |
R1-1.5mm |
||||
|
Round angle of impact edge |
R2-2.5mm,R8±0.05mm |
||||
|
Angle accuracy |
0.1° |
||||
|
Standard specimen dimension |
10mm×10(7.5/5)mm×55mm |
||||
|
Power supply |
3phs, 380V, 50Hz Or 220V,60Hz |
||||
|
Dimensions (mm) |
2124 x 600 x 1340 |
2200 ×650 ×1960 |
2450 x 1200 x 2455 |
||
|
Net Weight (kg) |
450 |
650 |
2300 |
||
