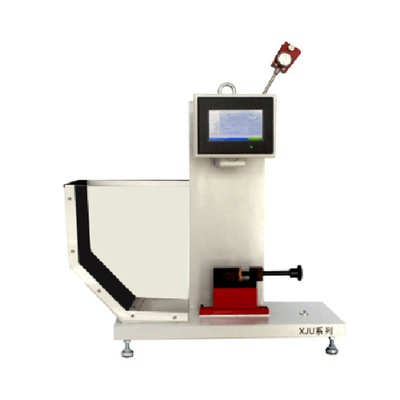

New design 500j pendulum charpy 500J equipment 300j dial display impact testing machine with great price
1. Application
It is mainly used to measure the impact toughness of non-metallic materials such as hard plastics, reinforced nylon, glass fiber reinforced plastics, ceramics, cast stone, and electrical insulating materials. Ideal testing equipment for chemical industry, scientific research units, colleges and universities, quality inspection departments, professional manufacturer laboratories and other units.
2. Standards:
tandards compliant.
|
Standard |
Standard name |
|
GB/T 1843—2008 |
"Plastic Cantilever Beam Impact Test Method" |
|
ISO 180-1993 |
"Determination of Impact Strength of Plastic Cantilever Beams" |
|
GB/T 2611-2007 |
"General Technical Requirements for Testing Machines" |
|
JB/T 8761-1998 |
"Plastic Cantilever Beam Impact Testing Machine" |
3. Main Technical Specifications:
|
Model |
XJUD-22T |
XJUD-5.5T |
|
Impact energy |
11J,22J |
2.75J,5.5J |
|
Impact velocity |
3.5m/s |
|
|
Pendulum advance angle |
1500 |
|
|
Distance from impact blade to above jaw |
22mm±0.2mm |
|
|
Strike center distance |
335mm |
|
|
Blade radius |
R=0.8mm±0.2mm |
|
|
Energy loss |
11J <0.05J;22J <0.10J; |
1.0J <0.02J;2.75J <0.03J;5.5J <0.03J |
|
Minimum resolution |
0.001J |
|
|
Instrument size |
L*W*H: 700mm×350mm×850mm |
|
|
Required space |
Fore and aft distance:0.4m, Left and right distance:1.5m,Upper distance:1.5m |
|
|
power supply |
100VA 220VAC 50HZ |
|
Sample type: the best sample is type 1, which is the preferred type
|
Sample model |
Length L(mm) |
Width b(mm) |
Thickness h(mm) |
|
1 |
80±2 |
10.0±0.2 |
4 |
|
2 |
63.5±2 |
12.7±0.2 |
12.7±0.2 |
|
3 |
63.5±2 |
12.7±0.2 |
6.4±0.2 |
|
4 |
63.5±2 |
12.7±0.2 |
3.2±0.2 |
