Brand New Accelerated Aging Test Chamber ASTM IZOD Astm Digital Izod Impact Testing Machine Price With High Quality
1. Application

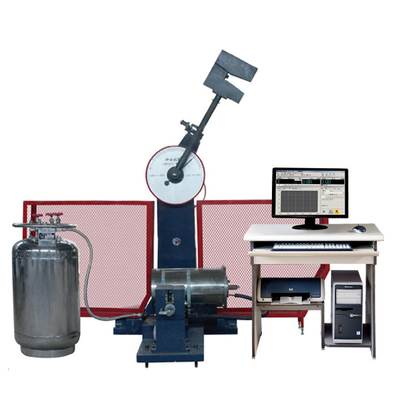

JBDW-C type impact testing machine is used for measuring the metal material resistance performance under dynamic load, in order to determine the material properties under dynamic load. It's a necessary testing machine, not only used in the metallurgy, machine manufacture etc areas, but also used for the science research.
2. Standards:
ASTM E23, ISO148-2006 and GB/T3038-2002, GB/229-2007
3. Main Technical Specifications:
Model | JBDW-300C | JBDW-500C | |||
impact energy | 150J | 300J | 250J | 500J | |
Value of every grid | 2J | 1J | 5J | 2.5J | |
Moment of pendulum(N.m)
| 160.7695
| 80.3848
| 267.9492
| 133.9746
| |
The distance between the pendulum shaft and impact point | 750mm | 800mm | |||
Impact speed | 5.2m/s | 5.4 m/s | |||
Pre-rising angle of the pendulum | 150° | ||||
Specimen bearer span | 40+0.2mm | ||||
Round angle of the jaw | R1-1.5mm | ||||
Round angle of impact edge | R2-2.5mm,R8±0.05(special order)mm | ||||
Angle accuracy | 0.1° | ||||
Standard specimen dimension | 10mm×10(7.5/5)mm×55mm | ||||
Thickness of impact knife | 16mm | ||||
Dip angle of supporting surface of supports | 11°
| ||||
Cooling way | liquid nitrogen refrigeration | ||||
Capacity of sample box | 10 | ||||
Range of low temperature | room temperature-196°C | ||||
Precision of controlling temperature | fluctuation ±1.5°C grades 2°C | ||||
Speed of sending specimen | ≤2S | ||||
Power supply | 3phs, 380V, 50Hz Or 220V,60Hz | ||||
Dimensions (mm) | 2200 ×1500×1900 | 2200 ×1500×1900 | |||
Net Weight (kg) | 850 | 950 | |||
