Home /Products/Plastic Impact Testing Machine/HUALONG 5.5J, Horniness 22J XJJ Digital Display Strong Nylon Plastic Izod Impact Testing Machine

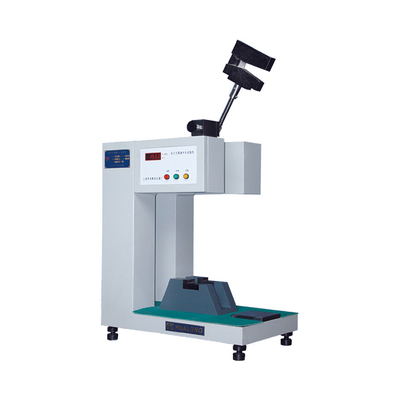

HUALONG 5.5J, Horniness 22J XJJ Digital Display Strong Nylon Plastic Izod Impact Testing Machine

1.0 Sets
MOQ
HUALONG 5.5J, Horniness 22J XJJ Digital Display Strong Nylon Plastic Izod Impact Testing Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1 Year, 12 Month
Customized Support: OEM, ODM, OBM
Model Number: XJJ
Power: Electronic
Brand: HUALONG
Product Name: Impact Testing Machine
Accuracy: 0.5/ 1 Grade
Test Force Range(KN): 5.5J ,22J
Original: China
Power Supply: 220V/380V
Delivery Time: Within 20 Days
Location: Shanghai
Stroke Of Piston(mm): 50-75
Certification: ISO, CE
Basic Infomation
Certification: ISO, CE
Model Number: XJJ
Payment & Shipping Terms
Packaging Details: Standard export polywood case
Supply Ability: 20 Set/Sets per Month
Product Description

Application:

The electronic type adopts rasterdisplay technique of measuring circle angle, with the characteristics of high precision, good stability and wide range of measuring, digital display of testing split strength, impact intensity,foreelevation, ascending angle, automatic correcting the loses energy revises .

Technical parater:

Impact energy 50J standard configuration (others optional)
Pendulum torque

7.5J Pendulum

PL=3.866Nm

15JPendulum

PL=7.733Nm

25J Pendulum

PL=12.889Nm

50JPendulum

PL=25.777Nm
Dial indexing angle 1/100
Impact speed 3.8m/s
Pendulum angle 160°

The distance between pendulum center

and sample center

 380mm
Round angle of the jaw R=1±0.1mm
Round angle of impact cutting edge R=2±0.5mm
Impact blade angle 30±l°
Span of support(mm) 40mm 60mm 70mm 95mm
Energy loss 0.5%
Dimension 550mm×350mm×850mm
Weight(Kg) 160kg
