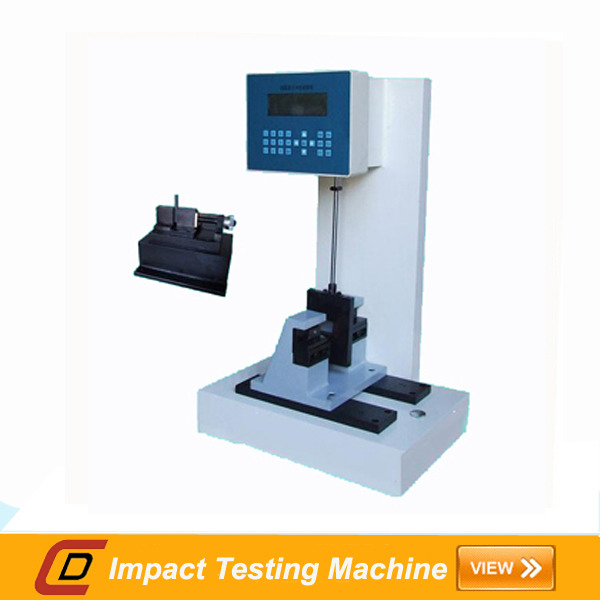

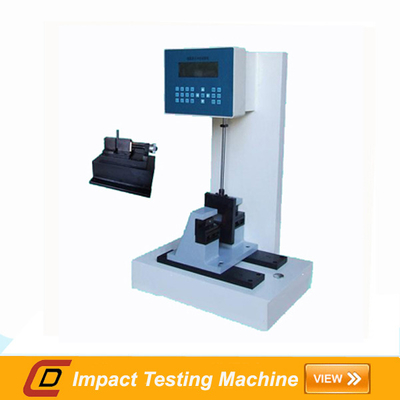

Brief Introduction
This type tester is mainly test the toughness of hard plastic, fiber reinforced composites, nylon, fiberglass, ceramic, plastic appliances, insulation materials and other non-metallic materials. It is widely used in universities, factories and inspection institutes.
It adopts round grating angle technology and digital measure the impact energy during the process of thrust. Also it has function of energy loss detection and correction.
Features:
1> high precision, good stability, large measurement range.
2> It belongs to digital pendulum impact testing machine.
Main technical specification:
A. Chargy:
1>Pendulum energy: 1J,2J,4J,5J ,7.5J,15J,25J
2>Impact speed: 2.9 m/s ,3.8m/s
3>Elevation angle of pendulum: 160°
4> The distance between the center of pendulum and specimen:380mm.
B. Izod
1> Impact speed: 3.5m/s
2> Pendulum energy: 1J 2.75J 5.5J,11J,22J
3> The distance between the center of pendulum and impact blade:322mm
4> Elevation angle of pendulum: 160°
5> The distance from impact blade to the jaw: 22mm
6>Blade radius: R=0.8mm
7>Specimen specification: according to the standard ISO180---82
Jinan Chenda Testing Machine Manufacturing Co., Ltd. was established in 2003, and is a professional comprehensive company which integrates research and development, production, marketing and service. Our products are applied widely in many fields such as scientific institutions, colleges, metallurgical, construction materials, railway trains, highway traffic, rubber plastic, wire and cable, and fire facilities.
Our company is located in the beautiful spring city - Jinan, which is the center for developing testing machines in China as well as the largest testing machines producing base at home.
We are specialized in providing:
1. Hydraulic universal testing machines
2. Electronic universal testing machines
3. Friction and wear testing machines
4. Complete impact testing equipment and bending testing machines
