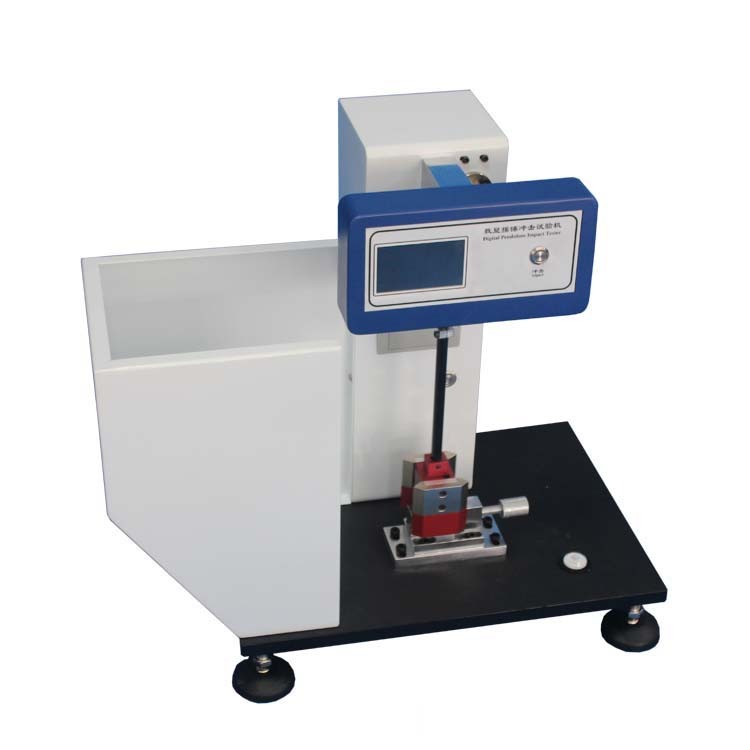

Hot Selling Plastic Toughness Impact Testing Machine Price
Application:
Plastic izod impact test machine is mainly used in hard plastic (including plank, materials, plastic profile), the increase of nylon, glass fiber reinforced plastic, ceramic, and cast stone, electrical insulating materials etc. Nonmetal material impact toughness is determined.Our company digital display cantilever beam impact testing machine have print the test results functions.
Characteristic:
English characters LCD shows the results, the storage of test results, and has the energy loss to be automatic correction function. Simple structure, convenient operation, data accurate and reliable.
Designing standard:
GB/T1843, ISO180, GB/T21189, GB/T2611, JB/T8761
Specifications:
| Model: | ASR-5606 |
| Impact speed: | 3.5m/s |
| Pendulum energy: | 11J,5.5J |
| Pendulum up angle: | 150 degree |
| Impact center distance | 335mm |
| Test accuracy: | ±0.1% |
| Resolution: | 0.01 |
| Distance from impact blade to clamp: | 22.0mm±0.2mm |
| Blade fillet radius: | R=0.8mm±0.2mm |
| Energy loss: | 1.0J-2%, 2.75J-1%, 5.5J-0.5% |
| Tester size(L*W*H) | 360*240*680mm |
