Digital Izod Impact Test Equipment for PE, PP, PVC, ABS, PS HY4252D

$1,250.00(>=1 Sets)
Price
Digital Izod Impact Test Equipment for PE, PP, PVC, ABS, PS HY4252D
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: HY4252D
Power: Electronic
Impact Velocity: 3.5m/s
Impact Energy: 2.75J, 5.5J
Impact Center Distance: 335mm
Pendulum Angle: 150°
Power Supply: AC220V, 50Hz
Dimensions: 700*350*850 Mm
Weight: 120kg
Warranty: 12 Months
Standards: ISO 20126
Package: Export Standard Wooden Case
Basic Infomation
Model Number: HY4252D
Payment & Shipping Terms
Packaging Details: Export Standard Wooden Case
Supply Ability: 100 Set/Sets per Month
Product Description
Product Description

Product Application

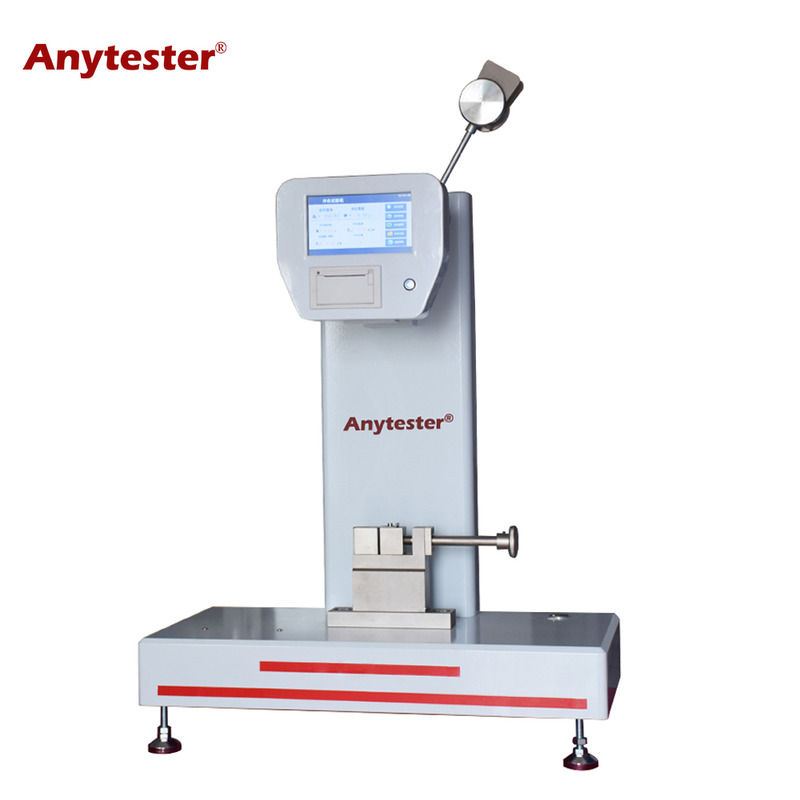

HY4252D Series Digital Izod Impact Tester is used to determine the impact toughness of non-metallic material such as rigid plastics, reinforced nylon, glass reinforced plastics, ceramics, cast stone, electrical insulating material, etc.

SPECIFICATIONS FOR HY4252D DIGITAL IZOD IMPACT TESTER
Model
HY4252DA
HY4252DB
Impact velocity
3.5m/s
Impact energy
2.75J, 5.5J
11J, 22J
Impact center distance
335mm
Pendulum angle
150°
Distance between striking edge and top surface of jaw
22.0mm±0.2mm
Corner radius of striking edge
R=0.8mm±0.2mm
Power supply
AC220V, 50Hz
Dimensions
700×350×850mm
Weight
120kg
Details & Features




Touch Screen Control

> Large LCD display

> Touch screen control make the operate simple

> Modularization design make after sale service easy





Modularization Design

> English and Chinese language changeable
> Remote control for software update anytime
> Historical date date query and print available
> Test report can be output and store on PC



High Quality Material

> Building in mini printer

> Reserved port for Stylus printer

> Historical date can be printed



High quality material

> High quality stainless steel make the machine long life
> Good machinery technology perform nice appearance

Our Company

History

Since 1982 with more than 20 years’ experience

Warranty

Two Year Warranty for whole product

Training

Video and user manual for training

Onsite service

Installation and training service is available

Testing service

Free sample testing before order is available

Lead time

15 working days lead time for most product

Certifications
Packing & Delivery
Packaging
Size
85 (L) * 51 (W) * 94 (D)
Weight
10Kg



Packaging Details
1. The equipment is covered with film is protect it from water vapour during the trip.
2. The box is filled with foam to protect the equipment from impact.
3. Exported wooden box made from plywood, don't need fumigated.
Payment




Payment Term


T/T
EXW

30% T/T in advance, paid the balance before shipment
FOB
CFR(C&F)

30% T/T in advance, paid the balance against copy of B/L
CIF
L/C
L/C amount above 50,000 usd, we can accept L/C at sight
West Union

Amount lower than 5000usd
West Union
Delivery Time
7~10days after receiving payment for one container
