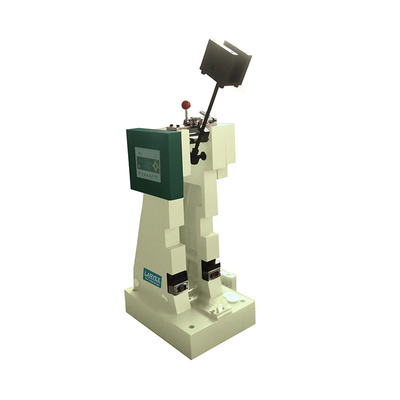

This machine adopts the technology of photoelectric encoder to examine angle, the whole digital measures the material absorption energy and impact intensity of the material in the course of breaking, and possess intact energy and lose detection and revision function. High precision and stability, large test range. The tester is a kind of whole digital impact testing machine. By changing the weight at the end of pendulum it can get many kinds of test energy.
|
Model |
CZT 3250 |
|
|
Impact Method |
Charpy |
IZOD |
|
Impact energy |
7.5J, 15J, 25J, 50J |
5.5J, 11J, 22J |
|
Energy Accuracy |
0.5 % |
|
|
Impact speed (m/S) |
2.9; 3.8 |
3.5 |
|
Pendulum moment |
Pd7.5 = 4.0192 Nm /Pd15 = 8.0385 Nm Pd25 = 13.397 Nm/ Pd50 = 26.795 Nm |
Pd5.5 = 2.94744Nm/ Pd11 = .8949Nm Pd22 = 11.7898Nm |
|
Raising angle |
150° |
150° |
|
Round angle radius |
R=2mm±0.5mm |
R=0.8mm±0.2mm |
|
Impact center distance |
395mm |
335mm |
|
Power supply |
1 Phase, 220V, 50Hz/60Hz |
|
|
Dimension & Weight |
550mm×350mm×850mm, 160kg |
|
