XJ-50D Computer Control
Plastic Charpy Izod Pendulum Impact Testing Machine
Applications:
XJ-50D Computer Control Plastic Charpy Izod Pendulum Impact Testing Machine is computer
control and digital display type. Charpy impact and Izod impact, can be selected and combined
the each of energy pendulum arbitrarily.
Its Man-Machine dialogue very convenient, high precision, automatic display the impact energy,
automatic calculation the impact strength, can automatic calculate the average impact strength
of the entire set of samples, can delete data arbitrarily. This machine is electric release hammer.
Main Specification:
|
Model |
XJ-50D |
|
Pendulum Energy |
Charpy: 1J, 2J, 4J, 5J, 7.5J, 15J, 25J, 50J |
|
Izod: 1J, 2.75J, 5.5J, 11J, 22J |
|
|
Impact Speed |
Charpy: 2.9m/s; Charpy: 3.8m/s; Izod: 3.5m/s |
|
Pendulum Angle |
160° |
|
Distance Between Pendulum Center And Sample Center |
Charpy: 221mm; Charpy: 380mm; Izod: 322mm |
|
Fillet Radius Of Support Blades |
R=1mm |
|
Impact Blades Angle |
30° |
|
Fillet Radius Of Impact Blades |
R=2mm |

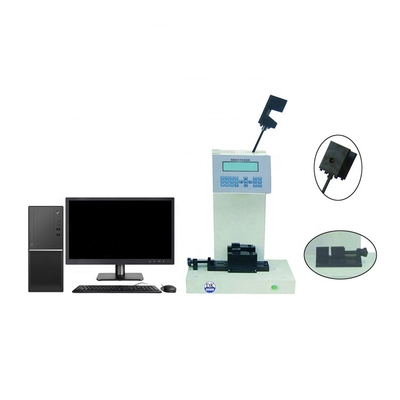

Product Physical Pictures:
