Metal Materials Perform Izod Testing JBIC-5D And Charpy Impact Tester

1.0 Sets
MOQ
Metal Materials Perform Izod Testing JBIC-5D And Charpy Impact Tester
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: JBIC-5D
Power: Electronic
Product Name: Impact Tester
Application: Metal Materials Impact Testing
Warranty: 24 Months
Model: JBIC-5D
Usage: Anti-impact Capacity
Power Supply: AC 380V 50HZ 5A
Display: Dial
Net Weight: 70KGS
Impact Energy: Charpy: 7.5J/ 15J /25J,Izod: 5.5J /11J/ 22J
Test Standard: ASTM E23, EN 10045-2
Basic Infomation
Model Number: JBIC-5D, JBIC-5D
Payment & Shipping Terms
Packaging Details: Standard Export Wooden Box
Supply Ability: 10000 Set/Sets per Year
Product Description
Product Description

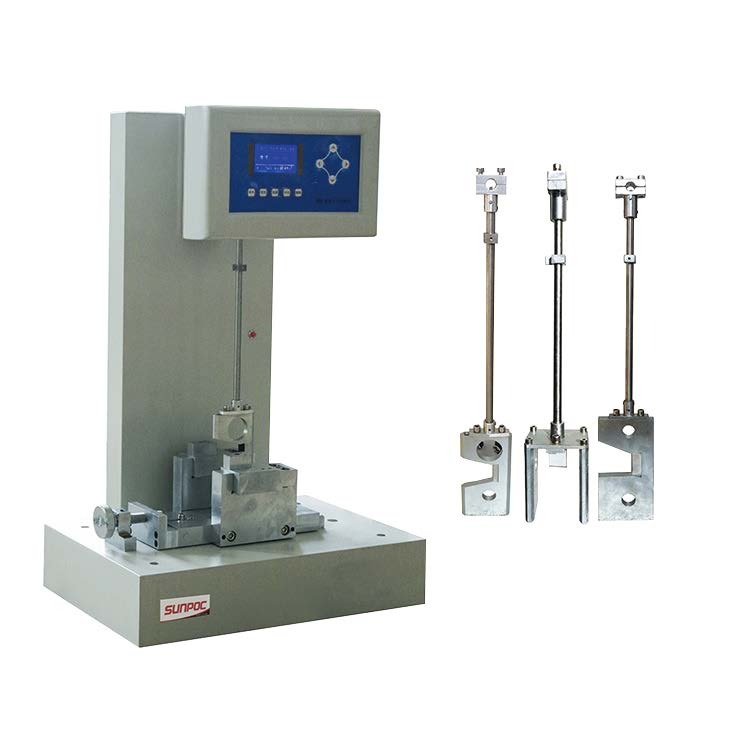

JBIC Series Izod & Charpy Impact Tester

JBIC Series Izod & Charpy Impact Tester Profile: JBIC (Izod & Charpy) Series are innovative multi-test instrument for the determination of polymers and composite materials resilience according to both Charpy and Izod methods. Is used to test or determine the anti-impact capacity of non-metal materials, such as hard plastic, enhanced nylon, ceramic, toughened glass, pottery, cast stone, dielectric etc. and other metallic and non-metallic materials. Being adopted by scientific research institutes, colleges, universities and many non-metallic materials manufactures and laboratories. Also, it has advantages of simple in structure, easy to operate and high accuracy. This machine is developed according to the standard of Standards ENISO179, ENISO180, ISO9854, DIN53453, ASTMD256 It also can be connected to the PC.
Features: 1) Energy: Charpy 1J, 2J, 4J, 5J, 7.5J, 15J, 25J Izod 1J, 2.75J, 5.5J, 11J, 22J 2) Impact Speed: Charpy 2.9m/s 3.8m/s Izod 3.5m/s 3) Support: Charpy 40mm 60mm 70mm 95mm Izod 22mm 4) Size (L×W×H): 500mm×350mm×780mm 5) Weight: 130kg 6) Power Supply: AC220±10V 50HZ 7) Working Condition: 20±5℃, RH≦80%

Detailed Images
Model
JBIC -5D
Energy
Charpy: 1J /2J /4J/ 5J
Izod: 1J /2.75/5.5J
Speed
 Charpy: 2.9m
Izod: 3.5m/s
Display
digital DRO (LCD)
control
Auto
Our Factory
Guizhou Sunpoc Tech Industry Co., LTD is committed to supply the customers with the highest quality products and solutions in materials testing and science research. Our quality products are used in a wide range of industries like civil and military. Being a professional manufacturer and exporter in the field of quality test instruments, Sunpoc dedicated to materials and specimen testing industries for 15 years and gained high reputation from our customers all over the world. Sunpoc continuously reviews and updates our product and service to macth the need of our clients with the advanced technologies.
