Home /Products/Impact Load Testing Machine/Hot sales izod impact test machine for impact test HT-XB-02

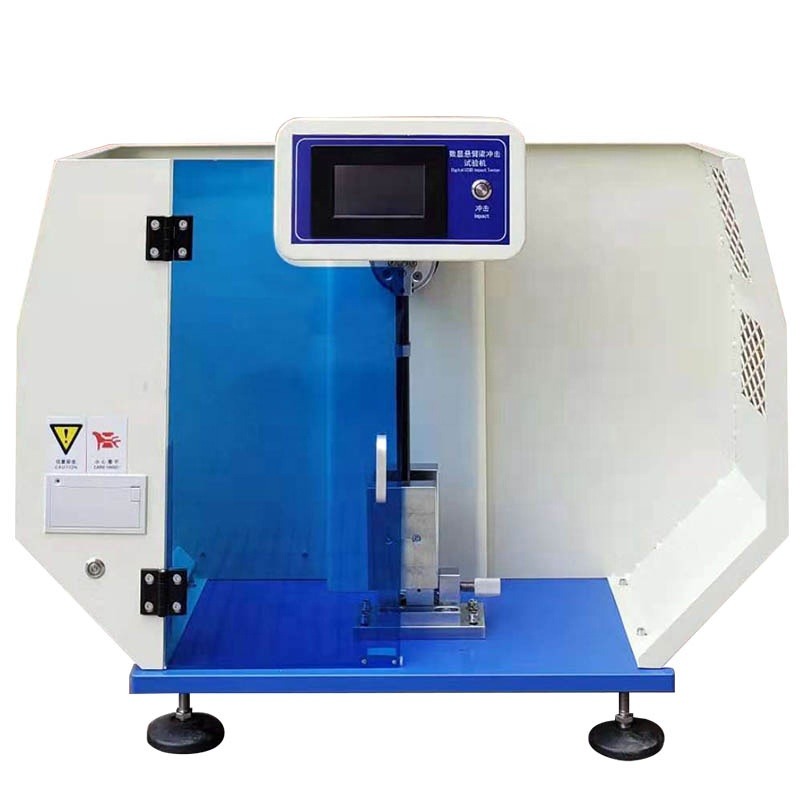

Hot sales izod impact test machine for impact test HT-XB-02

1.0 Sets
MOQ
Hot sales izod impact test machine for impact test HT-XB-02
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1 Years
Customized Support: OEM, ODM
Model Number: HT-XB-02
Power: Electronic
Warranty Period: 1year
Impact Energy: 1J,2.75J Or 5.5J,11J,22J
Impact Speed: 3.5m/s
Display Method: Digital Display With Printing Function
Precision: Angle (0.01 °) Energy (0.001J)
Distance Between Jaw Support Lines: 40 Mm,60 Mm
Pendulum Advance Angle: 160°
Corner Radius Of Knife Edge: 335mm
Power Supply: 220V
Basic Infomation
Model Number: HT-XB-02
Payment & Shipping Terms
Packaging Details: Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.
Supply Ability: 60 Set/Sets per Month
Product Description
Products Description
Model
HT-XB-01
Impact velocity
3.5m/s
Impact energy
（1J、2.75J）or（5.5J、11J、22J ）
Display method
Digital display with printing function
Precision
Angle (0.01 °) Energy (0.001J)
Pendulum advance angle
160°
Corner radius of knife edge
335mm
Fillet radius of impact blade
R=2±0.5mm R=0.8±0.2mm
Jaw radius
R=1±0.1mm R=1±0.1mm
Distance between jaw support lines
40 mm、60 mm
Pendulum empty impact
0.5%
Power supply
220V

The role of the product:

Digital display cantilever beam impact testing machine is used to determine the impact toughness of non-metallic materials such as hard plastics, glass fiber reinforced plastics, ceramics, cast stones, electrical insulating materials, etc. It is an ideal testing equipment for chemical industry, scientific research institutions, colleges and universities, quality inspection and other departments.

Product advantages

1. It adopts Chinese and English contrast, touch screen display operation, PLC module control, can store 5 sample data and calculate the average impact strength. 2. The impact testing machine of the simple supported beam and the cantilever beam are integrated, and the test report can be printed in both Chinese and English. 3. Simple operation and stable performance. 4. Simply supported beam impact energy is 7.5, 15, 25, 50J (optional), cantilever beam impact energy is 1, 2.75, 5.5, 11, 22J (optional)
Hot Product
Company Information

Huitai Machinery Group Co., Ltd is a professional manufacturer of various testing equipment with a history of 24 years. Products are widely used in paper products, packaging, ink printing, tape, bags, shoes, leather products, environmental protection, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries and applicable to all scientific research units, quality inspection institutions and academic fields.
Our Services

Huitai Equipment Service:


If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide
within 3 working days. We can offer operation video and English operation muanual. We can provide video-con. Onsite Service:
1.Device installation; 2.Equipment Operation Test Technology training;
3.Equipment Calibration;
4.Daily maintenance and maintenance of equipment Free technical training for visiting factories 24-hour Online contact Free
software upgrades Free information: 1.Product Instruction;
2.Product operation instruction/video;
3.Experiment Test (test application, test report) Device Problem Handling: 1. Social media 24 hours online communication;
2. Mail Seamless Docking;
3. Video Conferencing;
4. Artificial free door-to-door service
FAQ

Why choose us?

1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator. 2.Excellent
After sale Service: 12 months warranty. Besides, we can help you to repair your problem controller freely, Free replacement parts,even it's not from our factory's. What you need to do is to send us the controller.We can offer operation video and English operation handbook. We can provide video-con
Please feel FREE to contact us if you have any needs. If you want to know more
information... Please leave a message below and click " SEND " Thanks for your time and attention!
