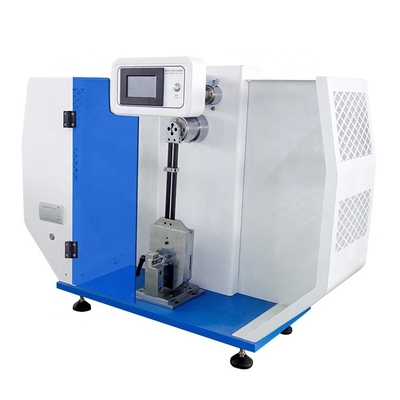

Hot Selling Nylon Plastic Pendulum Impact Tester Machine High Accuracy Impact Tester DS-JC

Summary :

The digital Charpy cantilever impact tester is used to measure the impact toughness of non-metallic materials such as plastics, reinforced nylon, FRP, ceramics, cast stone, plastic electrical appliances and insulating materials. Pendulum impact testing machine is a common equipment for quality inspection in scientific research institutions, colleges and universities and non-metallic material manufacturers.

Test Standards:

Iso179-2000 "Determination of Impact Strength of Simply Supported Beams of Plastic-Rigid Materials"

GB/T 21189 inspection of pendulum impact testing machine for plastic simply supported beams, cantilever beams and tensile impact tests

GB/T1043 -- 2008 Impact Test Method for Rigid Plastics Simply Supported Beams

JB/T8762 -- 1998 Impact Testing Machine for Plastic Simply Supported Beam

GB/T 18743-2002 Impact Test Method for Simply Supported Beams of Thermoplastic Pipes for Fluid Transport (Applicable to pipe Parts)

Iso180-2000 "Determination of Impact Strength of Plastic-Rigid Cantilever Beams"

GB/ T1843-2008 Impact Test Method for Rigid Plastic Cantilever Beams

JB/T8761 -- 1998 Plastic Cantilever Impact Testing Machine

ASTM D256-2010 Test Method for Determination of Impact Strength of Plastic IZOD Pendulum Other test standards, pls kindly share with us, we support customize.

Test theory:

The cantilever impact testing machine uses the principle of energy conservation, that is, the energy consumed by the impact sample is the potential energy difference before and after the pendulum test. A sample supported as a vertical cantilever beam by a pendulum with known energy is used to measure the energy absorbed when the sample is damaged. (the impact line is a fixed distance from the specimen fixture, and for notched specimens, the impact line is a fixed distance from the notch centerline.)

Main Features:

1.High precision intelligent controller, equipped with LCD, can read data intuitively and accurately

2.The use of carbon fiber pendulum rod can improve the rigidity of the material in the impact direction, and concentrate the impact quality on the mass center of the pendulum to truly achieve vibration free impact test and increase the service life.

3.The imported high-resolution digital encoder is adopted, and the angle test accuracy is higher and more stable

4.The impact hammer and imported ball bearing in line with the aerodynamic principle greatly reduce the friction loss caused by machinery.

5.Automatically calculate the final results. The test data can save 24 groups of data and calculate the average value

6.The Izod impact tester can select the Chinese and English operation interface, and the test results can select J / m, kJ /m², kg cm / cm, FT Ib / in and other units

7.Built in micro printer, which can print the average value.

Technical Specifications:

Model Choices:

Real imagines :

We have professional packing team and shipping forwarder to pack and deliver your products!

Packing:

1. Out packing:Standard export wooden case.

2. Inner packing:With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.

3. Checking teams: Specialized staff to inspect and classified your goods.

Shipping:

You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the shipping cost after receipt ofyour order. It's more preferable for you to provide us with your own FEDEX/DHL account number so that the delivery charge can be charged directly from your account.

During the whole business process, we offer Consultative Selling service.

4)Production and delivery process:

We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.

After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing. Deliver the products in confirmed shipping time and inform customer.

5)Installation and after sale service:

Defines installing those products in the field and providing after-sales support.
