Charpy Impact Testing Machine and IZOD Impact Tester for Plastic 180 ISO179 ASTM D256

1.0 set
MOQ
Charpy Impact Testing Machine and IZOD Impact Tester for Plastic 180 ISO179 ASTM D256
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 3 Years, 1 Year
Customized Support: OEM, ODM, OBM
Model Number: Pendulum Impact Tester
Power: Electronic
Product Name: Pendulum Impact Tester
Test Material: Plastic Film
Key Words: Plastic
Usage: Impact Testing Machine
Display: Touch Screen
Voltage: 120V/220 /230
Power Supply: Custom
Standard: ISO 180 ISO179 ASTM D256
Basic Infomation
Model Number: Pendulum impact tester
Payment & Shipping Terms
Packaging Details: Wooden
Supply Ability: 300 Set/Sets per Month
Product Description
Product Description
Charpy/lzod Impact Teser is a high performance impact tester designed to precisely determine the absorbed impact energy and resistance to breakage of plastic specimens
Features
1. The innovative design allows this tester to be used for both Izod and Charpy test. 2.Unique and innovative design: vice and pendulum allows operator to run alternatively Charpy and Izod tests withou changing the instrument geometry. 3. Impact speeds of 2.9m/s & 3.5m/s(or 3. 8m/s &3. 5m/s) as well as multiple impact energies can be generated by one pendulum. 4. High mass, traditional pendulum design concentrates energy at the impact point with minimal energy loss due to vibration. 5. The electrics contain a high-resolution encoder for accurate measurement of the impact angel. 6. Touch screen control for quick and easy input of parameters, interactive software allows for users input regarding omplete, partial hinge broken and non-broken samples. 7. Tester connected to PC through RS232 interface for direct data acquisition. Test data can be saved or exported using the included software package. 8. Results are automatically corrected for energy loss due to air and mechanical friction. 9. Multiple safety protection ensures the operation safety of operators. 10. Brake and Notch centering device are equipped for convenient operation. 11 Pass CANS T0645 impact test.
Detailed Images
Size Information
Model Chart of This Design

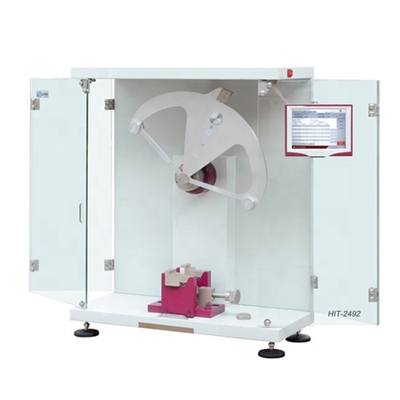

HIT-2492
HIT-2494
Impact speed
3.5m/s, 2.9m/s
3.5m/s, 3.8m/s
Energy levels
For lzod:1J, 2.75J, 5.5J
For Charpy:0.5J, 1J, 2J, 4J, 5J
For lzod:5.5J, 11J, 22J
For Charpy:7.5J, 15J, 25J, , 50J
Measurement resolution
0.01J
Span of Charpy
62mm
Radius of striking edge(Charpy)
2mm±0.5mm
Angle of striking edge(Charpy)
30。
Radius of striking edge(Lozd)
R=0.8mm±0.2mm
Location of striking edge above top surface of support(Lozd)
22mm±0.05mm
Product
The Impact tester is an instrument used to conduct impact tests on thermoplastic materials, in order to determine their impact fragility characteristics under specified stress conditions. There are three methods often used: Charpy, Izod and Tensile impact. These methods used differ in the way the specimen clamped and the impact energy & speed required.
Two kinds of display ways have been provided: digital and mechanical dial display Digital display type has a function of automatical calibration of energy losses High precision, perfect stability and easy operation enable the tester to gain CE certificate and be sold all around the world.
MODEL
NAME
ENERGY(J)
SPEED(m/s)
DISPLAY
STANDARD
XJJ-5
Charpy impact tester
0.5，1，2，4，5
2.9
Dial
ISO179
XJJ-50
Charpy impact tester
7.5，15，25，50
3.8
Dial
ISO179
XJJD-5
Electronic Charpy impact tester
0.5，1，2，4，5
2.9
Touch screen
ISO179
XJJD-50
Electronic Charpy impact tester
7.5，15，25，50
3.8
Touch screen
ISO179
XJU-5.5
IZOD impact tester
1，2.75，5.5
3.5
Dial
ISO180,ASTM D256
XJU-22
IZOD impact tester
11，22，（5.5）
3.5
Dial
ISO180,ASTM D256
XJUD-5.5
Electronic IZOD impact tester
1，2.75，5.5
3.5
Touch screen
ISO180,ASTM D256
XJUD-22
Electronic IZOD impact tester
11，22，（5.5）
3.5
Touch screen
ISO180,ASTM D256
XJL-50
Tensile impact tester
15.25，50
3.8
Dial
ISO8256
XJLD-50
Electronic Tensile impact tester
15，25，50
3.8
Touch screen
ISO8256
XJJ-50A
Charpy impact tester for pipes
15，50
3.8
Dial
ISO9854

Certifications

Company Introduction
Chengde City Jinjian Testing Instrument Co.,Ltd. is a professional manufacturing of polymer materials testing machine and chemical building materials testing equipment production enterprises. For the domestic current polymer materials test machine industry production of the most complete varieties, the largest production manufacturers, the industry's first brand. Founded in 1994, after more than 20 years of development, products from a single plastic door and window testing instrument development to now involving plastic profiles, pipes, engineering plastics, medical industry, automotive industry, aerospace, textile products and other products in the field of all polymer products physical testing equipment, product line more than 40, more than 100 kinds of specifications models. Is a provincial high-tech enterprises, but also Hebei Province test machine industry is the only well-known trademark enterprises. Jinjian covers an area of 8000m2, now has approx. 150 employees, including 20 engineers, three offices have been set up in east china, north china and south china. With its advanced develop technology , Jinjian Holds a large market not only in China, but also sells products to more than 60 countries located in Asia, Europe, South & North America, as well as Oceania.
Contact information:
Mobile phone/Wechat:+8615231439602
Email: tony@jj-test.com
Fixed telephone: 86-314-2296011
FAQ
Q: Are your company a trading one or a factory ?
A: Factory + trade (integration),30 years focusing on test instruments field,10 years exporting experience.

Q: How to choose the most suitable products?
A: Our professional team will give you the best suggestion as long as you tell us what kind of test you
need to do and the required specification.

Q: What's the delivery term?
A: At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20
working days after deposit receipt. If you are in urgent need, we can consider making special
arrangement for you.

Q: Do you accept customization service?
A: Yes, of course, we can not only offer standard machines, but also customized machines according to
your request. Don't hesitate to tell us your requirement, we will try our best to meet your needs.

Q: Can we visit your factory before order?
A: Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to
arrange hotel and pick up you from airport.

Q: How about your warranty?
A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and
part parts change, necessarily, our engineers may go to your place for better service.

Q: What is the order process?
A: Inquiry - quotation - communication - order confirming - deposit payment - production - testing and
debugging - balance payment - packing - delivery - customer receiving - after service.

Q: How to install and use the product?
A: he product is shipped with an operatin. (English version)
