SDEKON XJ-50Z
Digital Display Plastic Charpy & Izod Impact Testing Machine
Applications:
SDEKON XJ-50Z Digital Display Plastic Charpy & Izod Impact Testing Machine is single-chip
microcomputer control, digital display type.
Charpy impact and Izod impact, can be selected and combined the each of energy pendulum
arbitrarily. Its Man-Machine dialogue very convenient, high precision, automatic display the
impact energy, automatic calculation the impact strength, can automatic calculate the average
impact strength of the entire set of samples, can delete data arbitrarily. This machine is electric
release hammer, also installed the micro-printer, can print the test results.
Main Specification:
|
Model |
XJ-50Z |
|
Pendulum Energy |
Charpy: 1J, 2J, 4J, 5J, 7.5J, 15J, 25J, 50J |
|
Izod: 1J, 2.75J, 5.5J, 11J, 22J |
|
|
Impact Speed |
Charpy: 2.9m/s; Charpy: 3.8m/s; Izod: 3.5m/s |
|
Pendulum Angle |
160° |
|
Distance Between Pendulum Center And Sample Center |
Charpy: 221mm; Charpy: 380mm; Izod: 322mm |
|
Fillet Radius Of Support Blades |
R=1mm |
|
Impact Blades Angle |
30° |
|
Fillet Radius Of Impact Blades |
R=2mm |

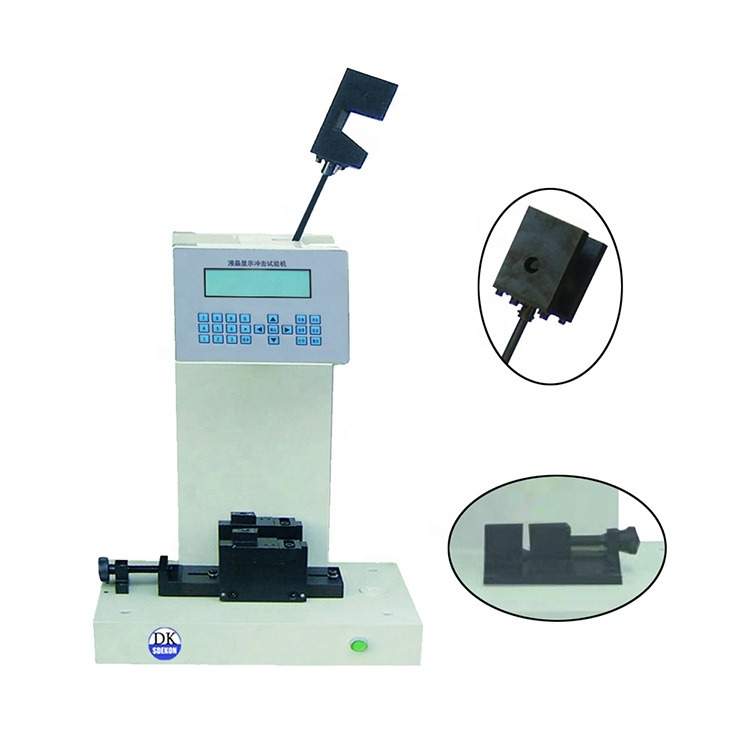

Product Physical Pictures:
